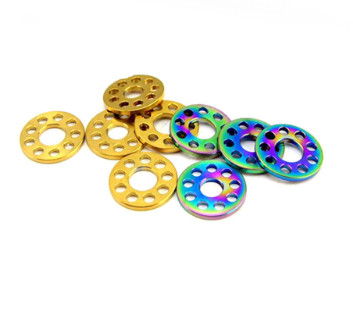

titanium alloy washer with holes gr2 gr5 for industry and mountain
bicycle
DETAIL INFORMATION
1. Grade:Gr5(Ti-6AL-4V)
2. Size:M2-M30
3. Titanium color, green, blue ,gold, black, purple.
4. Thickness:1.0-5mm
5. Features: Light weight, Low density, good acid and alkali
resistance, high corrosion resistance, excellent mechanical
strength, good thermal and hypothermia stability
4. Certification: ISO, ROHS, SGS
5. Finishing: Yellow, blue, white zinc
plated,Galvanized,HDG,Chromate,Dacromet
6, Applications:industry, automobile, bicycle, motorcyle and
medical implants screws.
| Physical Properties |
| Grade | Tensile stength MPA | Yield strength MPA | Elongation % |
| Gr1 | 240 | 170 | 24 |
| Gr2 | 345 | 275 | 20 |
| Gr4 | 550 | 483 | 15 |
| Gr5 | 895 | 828 | 10 |
| Gr7 | 400 | 275 | 18 |
| Gr9 | 620 | 483 | 15 |
| Gr12 | 483 | 348 | 18 |
| Gr23 | 793 | 759 | 10 |
| Composition |
| Grade | Fe Max | O Max | N Max | C Max | H Max | Pd Max | Al Max | Va Max | Ni Max | Mo Max |
| / | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % |
| Gr1 | 0.2 | 0.18 | 0.03 | 0.08 | 0.015 | | | | | |
| Gr2 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | | | | | |
| Gr4 | 0.5 | 0.4 | 0.05 | 0.08 | 0.015 | | | | | |
| Gr5 | 0.4 | 0.2 | 0.05 | 0.08 | 0.015 | | 5.5-6.7 | 3.5-4.5 | | |
| Gr7 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.12- 0.25 | | | | |
| Gr9 | 0.25 | 0.15 | 0.03 | 0.08 | 0.015 | | 2.5-3.5 | 2.0-3.0 | | |
| Gr12 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | | | | 0.6-0.9 | 0.2-0.4 |
| Gr23 | 0.25 | 0.03 | 0.03 | 0.08 | 0.0125 | | 5.5-6.5 | 3.5-4.5 | | |
| Ti | Balance |
FAQ
◊ What is your quality assurance?
A. 100% titanium sponge to produce titanium ingot and 3 times
melting to ensure the uniformity
of chemical composition.
B. For chemical composition inspection,not only inspect the
titanium ingot,but also the semi finished
products and finished products.Just to ensure 100% qualified
products before shipping
C. Strict Process control as per
technological requirements.Each person monitor each process and
record all data of production.
D. Strict Quality Tracing Mechanism.
◊ How I trust you?
A. US $23,000 Alibaba.com Trade Assurance
B. 10 years Alibaba Gold Supplier
C. BV and TUV certificated manufacturer
D. Free Sample before your batch order.
◊ How is your price and delivery time?
A. Based on the best quality,we will offer our best prices.
B. We are manufacturer,so we have price advantage.
C. 1 day delivery time for ready stock samples,but not longer than
5 days for sample produce. 20 to 25 days delivery time for batch
order.
