OD0.75" Seamless Titanium Tubes Gr1 Plain Ends for Condensers in
Nuclear Power Plants.
Seamless titanium tubes are widely used for condensers in nuclear power plants. All
titanium condenser and titanium tube condenser gradually replace
the stainless steel condensers. Titanium tubings are largely
reduced the total cost and prolong the service life. Seamless
titanium tubes Gr.1 are the most popular pipe products we
manufacturing and exporting. Our pure titanium tubes has
competitive price and short lead time.
Grade: Pure Titanium Grade 1
Type: Seamless tubes
Standard: ASTM B338 ASTM B337 ASTM B861
Shape: round tubes
Outside diameter: 19.05mm
Wall thickness: 0.5mm/0.71mm/0.8mm/1.0mm/1.2mm/1.6mm/2.11mm,etc.
Supply state: Annealed
length within:12m
Test: Ultrasonic test, Hydraulic test
Processing: Cold/Hot rolling
Application: heat exchanger, condenser, evaporator, etc,.
Detailed Information in Form for Seamless Titanium Tubes Gr1
| Item name | OD0.75" Seamless Titanium Tubes Gr1 Plain Ends for Condensers in
Nuclear Power Plants |
| Material | Pure Titanium Grade 1 |
| Type | Seamless |
| Standards | ASTM B338 ASTM B337 ASTM B861 |
| Shape | Round tubes with plain ends |
| Outside diameter | 0.75" (19.05mm) |
| Wall thickness | 0.5mm/0.71mm/0.8mm/1.0mm/1.2mm/1.6mm/2.11mm,etc. |
| Length | max.12m, or as per clients request |
| Surface | Pickling surface, polished bright surface |
| Test | Eddy current inspection, Hydraulic test, Ultrasonic test |
Industrial Applications of Seamless Titanium Tubes Gr1
Aircraft Hydraulic Systems
Oil and Gas Industry
Nuclear Power Plant Industry
Marine Industry
Sports Industry, like scooter, bike, bicycle.
Seawater desalination industry
Chemical and petrochemical industry
Pulp and paper industry
Plating and anodizing industry
Medical industry
Nuclear industry
Mechanical Properties of Titanium
ASTM Grade | | | | |
| | | |
| | | | | | |
| | | | | | |
| | | | | | 10E |
| GR7 | Ti-Pd | 50 | 345 | 40 | 275 | 20 |
| | | | | | |

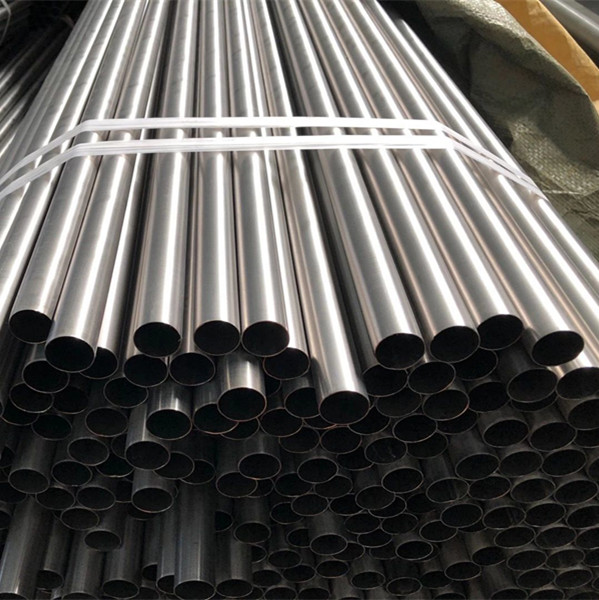

The first picture is pickling surface, and the second one is
polished bright surface. For heat exchanger tubings, the tube
surface is usually pickling surface, the purpose of pickling is to
remove the oxide skin produced after annealing of titanium tubes, a key process to ensure the quality of the tubes.
Company Information:
Baoji City Changsheng Titanium Co., Ltd. was established in
September 2001. It is located in the middle section of Baotai Road,
Baoji City, Shaanxi Province, which is known as "China Titanium
Valley". We specialize in the research and production of titanium
and titanium alloy materials, nickel and nickel alloy materials,
zirconium materials. After nearly two decades of development, we
have formed an annual production capacity of 2,000 tons. The
products are widely used in salt, chlor-alkali, chemical,
metallurgy, enviromental protection, coating, sports and other
industries.
Tags: Gr1 titanium tubings, Grade 1 titanium tube factory, titanium
heat exchanger tubes.
